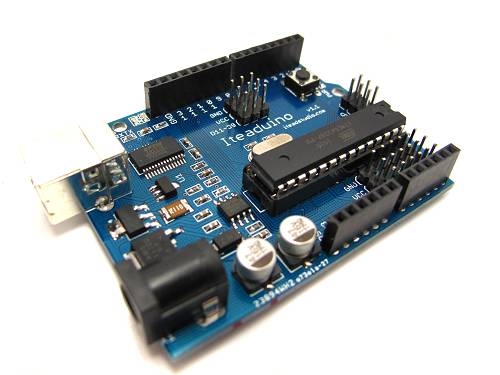

Iteaduino v1.1 (Clone Arduino Duemilanove plus more feature)
 Click to enlarge |
|
iteaduino is an Arduino compatible board. It’s designed is basing on Duemilanove scheme, 100% compatible to its existing program, shield and IDE. On the hardware part, remarkable changes are taken to improve the flexibility and user experience.
Basic features
- Inherits all of Arduino Duemilanove’ s features.
- Compatible to Duemilanove’s pin layout, screw hole and dimensions.
- 3.3V Operating Voltage selection
- More visible location of Indicator LEDs
-

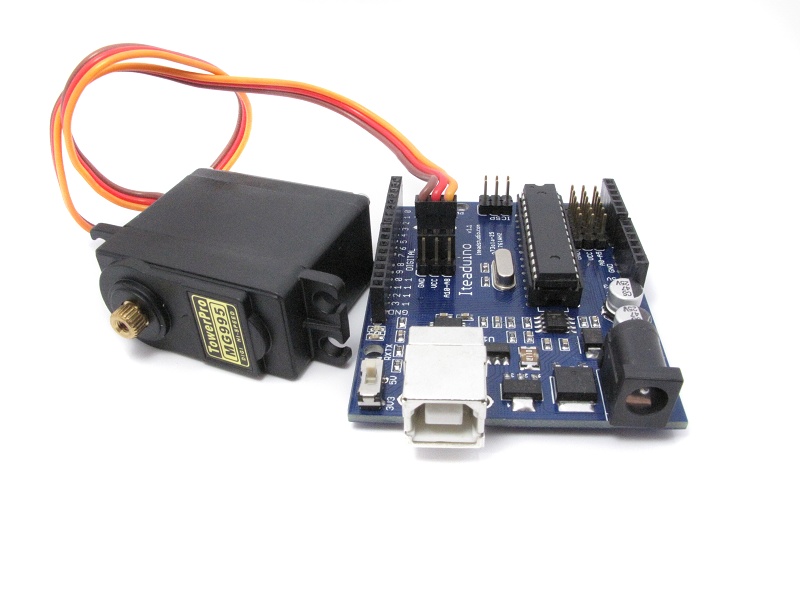

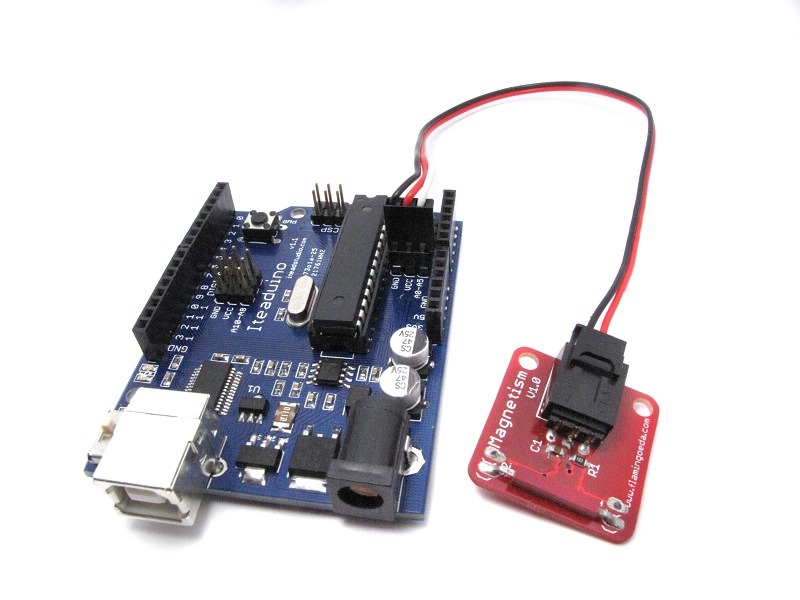

Pin out for Sensor and Servo

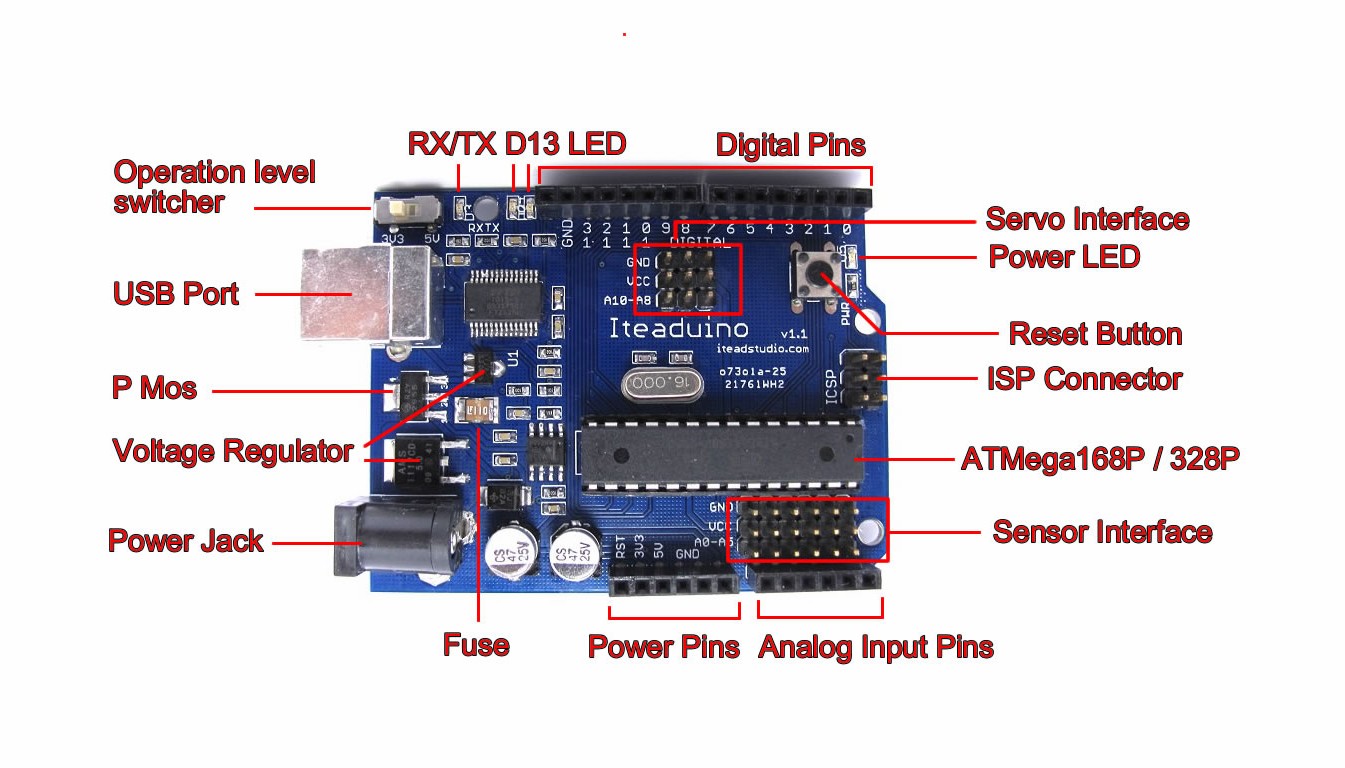

What are the changes from Arduino to iteaduino
- More powerful 3.3V power supply
- 3.3V Operating Voltage selection
- Easier access to reset button
- More visible location for LEDs
- Sensor and Servo interface break out
- Re-route PCB
Bonus Kabel USB 2.0
