Arduino Screw Shield

Arduino ScrewShield

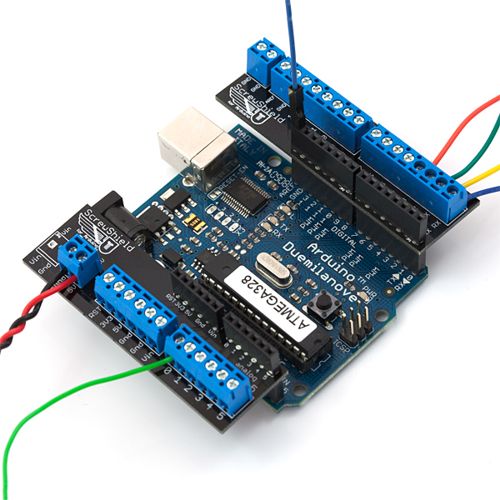

Description : The ScrewShield extends all pins of the Arduino out to 3.5mm pitch screw terminals. Both sides of the shield are broken out to the side of the Arduino, to allow access to everything on the main Arduino board. Stacking headers are also included so you can pile more shields on top.

This product includes all the parts shown and comes in kit form and must be soldered together by the end user. Check out the WingShield homepage for assembly instructions. All soldering is through-hole.

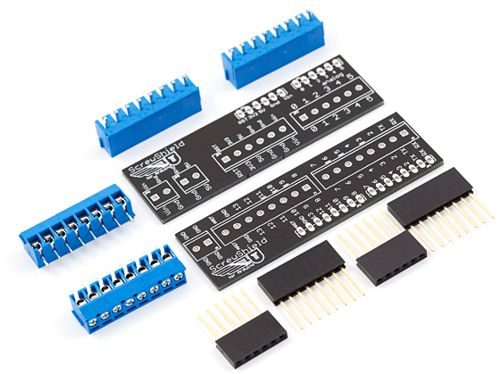

Includes :

Analog side PCB
Digital side PCB
2 sets of 6-pin stackable headers
2 sets of 8-pin stackable headers
34 pins of 3.5mm screw terminals - these come as 2- and 3-terminal blocks with slide locks

Documents :

ScrewShield Homepage (great assembly and usage hints)
