Smart Robot Batman v1.0

Wheels of good quality, strong grip, good enough load capacity. Do the smart car or a robot is a good choice. Our dedicated motor with very easy to build a robot of their own Oh. Screwless structure, solid and convenient.

5mm thick chassis is made of black opaque glass (other stores, in order to save costs, even if there are generally 3mm, and we had to keep their eyes open!), The appearance looks very sci-fi Oh! Quality hard enough, and very light, very durable and easy to maintain, leaving a lot of the chassis above the screw holes, you can easily install the sensors and control panel. If the screw holes can also be inappropriate to use a small drill their own holes, unlike metal, and heavy, it is not boring.

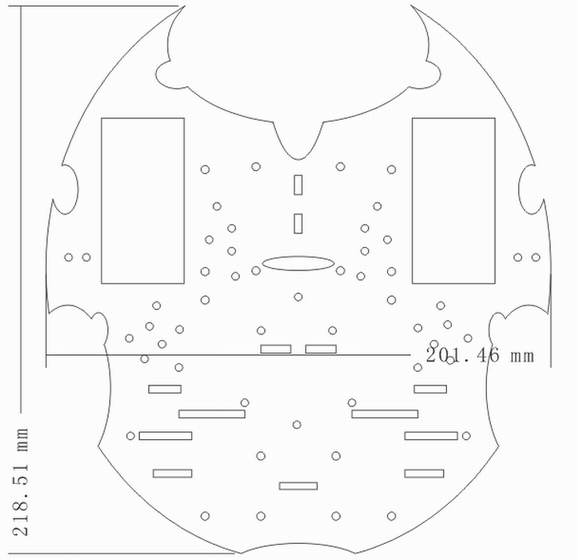

Length 21.85CM, width 20.14cm

Motor parameters are as follows:

Operating voltage: 3V ~ 12V DC (recommended operating voltage of about 6 to 8V)

1. maximum torque: 1000gf cm min (3V time)
2. no-load speed: 1:220 (3V time)
3. the load current: 120mA ( 250mA MAX) (3V pm)

This speed and torque produce the most suitable robot, the speed is not too fast, and torque is large enough.
